330101-00-20-10-02-00 - 3300 XL 8mm Proximity Probe

SPECIFICATIONS

Part Number: 330101-00-20-10-02-00
Manufacturer: Bently Nevada
Product Type: 3300 XL 8mm Proximity Probes
Product Family: 330101-00-20-05-11-05, 330101-00-08-10-02-00,
Availability: In Stock
Length: 1.0 metre
Weight: 0.323 Kg
Country of Origin: United States (USA)

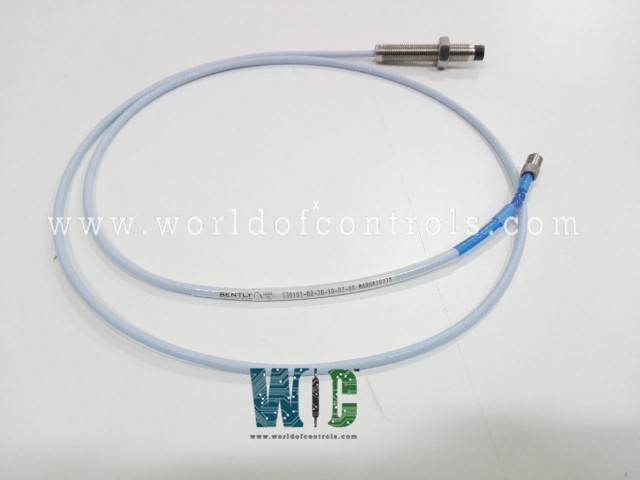

330101-00-20-10-02-00 is a 3300 XL 8mm Proximity Probes 3/8-24 UNF Thread Without Armour manufactured by Bently Nevada and used in Proximity Transducer System. The Proximity Transducer System and Sensors of the 3300 XL series work with replaceable probes of different lengths, armor, and connectors made by Bently Nevada.

Configuration

• Armored and Unarmored Options
• Multiple Connector Options
• Complete Interchangeability of Units and Cabling

Product Attributes

• Unthreaded Length: 0.0 in
• Overall Case Length: 2.0 in
• Total Length: 1 m (3.3 ft)
• Connector and Cable-Type: Miniature Coaxial ClickLoc Connector, Standard Cable
• Agency Approval: Not required

330101-00-20-10-02-00 Characteristics

• Length: 1.0 metre (3.3 feet)
• Weight: 0.323 Kg
• Storage Temperature : -51 °C to +177 °C

System Features

• The system generates an output voltage that is exactly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) data. The system's principal uses include vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The 3300 XL 8 mm system provides the most advanced performance in our eddy current proximity transducer systems.
• The standard 3300 XL 8 mm 5-metre system also completely conforms with the API 670 Standard for mechanical configuration, linear range, precision, and temperature stability.
• All 3300 XL 8 mm proximity transducer systems provide this level of performance and allow complete interchangeability of probes, extension cables, and Proximitor sensors, removing the need to match or bench calibrate individual components.
• Each 3300 XL 8 mm Transducer System component is backwards compatible and interchangeable4 with other non-XL 3300 series 5 mm and 8 mm transducer system components5. This compatibility includes the 3300 5 mm probe, which is ideal for situations where an 8 mm probe would be too big for the given mounting area.

World of Controls has the most comprehensive catalog of Bently Nevada Replacement parts. Our professionals are standing by to help you with your needs. If you require any additional information, please contact WOC.



FREQUENTLY ASKED QUESTIONS



What is Bently Nevada 330101-00-20-10-02-00?
The 330101-00-20-10-02-00 is a 3300 XL 8mm Proximity Probe used in Proximity Transducer System.

How to Check Price and Availability For Proximity Probes?
Please Contact World of Controls FZE for sales at +1 609 385 1231 or Request a Quote.

What is the Storage Temperature of the component?
Storage Temperature ranges from -51 degrees Celsius to +177 degrees Celsius.

How much is the Overall Case Length?
Overall Case Length is 2.0 inches.
